M2.5: Shear Strain in a Plate

Plan the Solution

State the Problem
Table of Contents
Plan the Solution
Compute Angle at P
Compute Shear Strain

scene 3 of 5

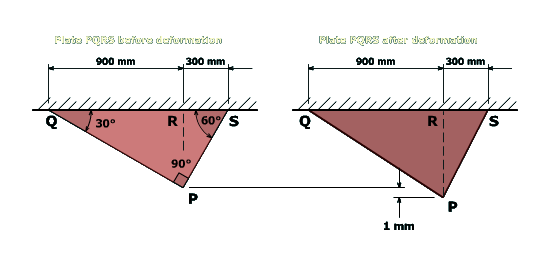

The figure shows a triangular plate P Q R S before and after deformation. The base of the triangle is Q R S and it is fixed to the ceiling. The length of the segment Q R is 900 millimeters and the length of the segment R S is 300 millimeters. The apex of the triangular plate is P. The angle at Q is 30 degrees, the angle at S is 60 degrees and the angle at P is 90 degrees. After deformation, the apex P, extends downwards by 1 millimeter.

Initially, corner $P$ measures $90^{\circ}$ ...
