Chapter 8: Bending
M8.4: Visualize Bending Stresses
Yellow Area (3) Moment Arms
State the Problem
Table of Contents
Orange Area (1)
Green Area (2)
Yellow Area (3)
Blue Area (4)
Blue Area (5)
Summary of Internal Forces
Finding the Internal Moment M
Orange Area (1) Moment Arms
Green Area (2) Moment Arms
Yellow Area (3) Moment Arms
Blue Area (4) Moment Arms
Blue Area (5) Moment Arms
Summary of Internal Moments
Finished
scene
12
of
16

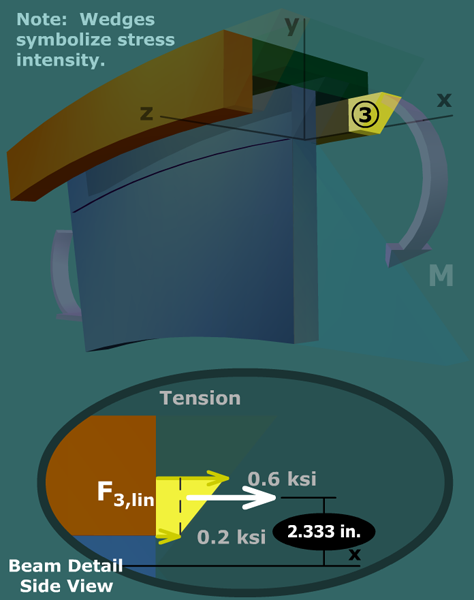

The resultant force from the linear portion of the stress distribution is located
2.333 in.
above the neutral axis.
