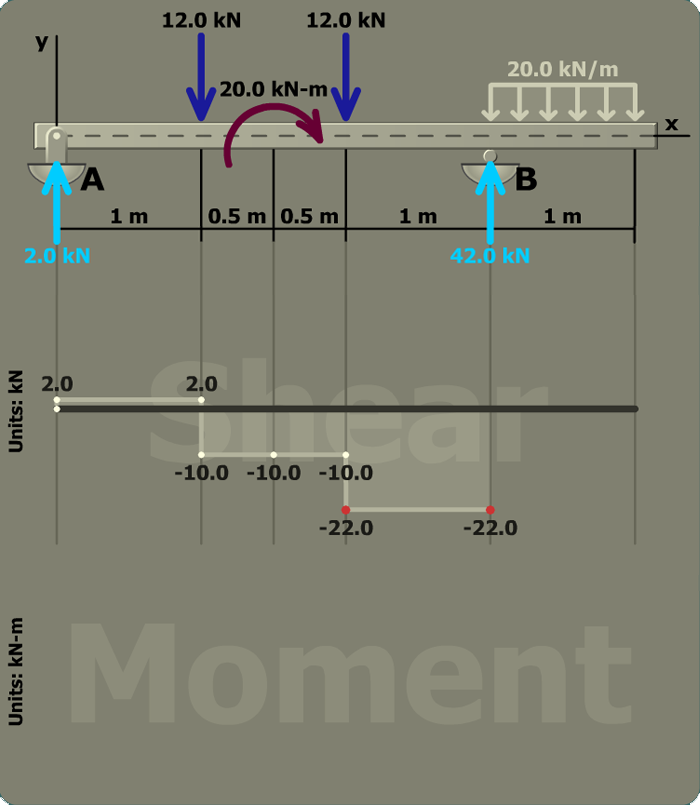

Constructing the shear diagram
Considering the segment
from x = 2 m to x = 3 m
area under
load = 0.00 kN
concentrated
forces = 0.00 kN
total shear
force = 0.00 kN
at x = 2 m, V = -22.00 kN
total shear
force = 0.00 kN
at x = 3 m, V = -22.00 kN
