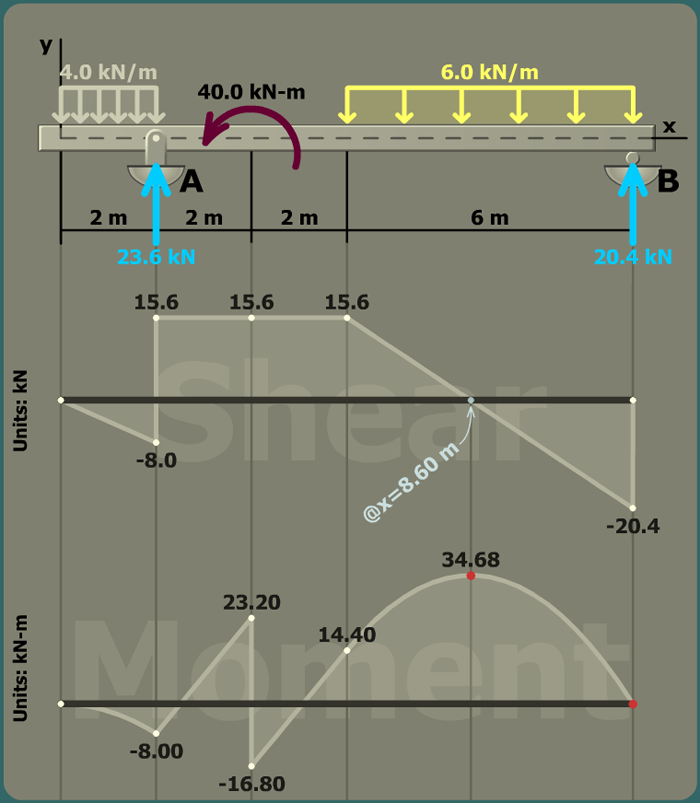

Constructing the shear diagram
Considering the segment
from x = 8.6 m to x = 12 m
area under shear
diagram = -34.68 kN-m
concentrated
moments = 0.00 kN-m
change in bending
moment = -34.68 kN-m
at x = 8.6 m, M = +34.68 kN-m
change in bending
moment = -34.68 kN-m
at x = 12 m, M = 0.00 kN-m
