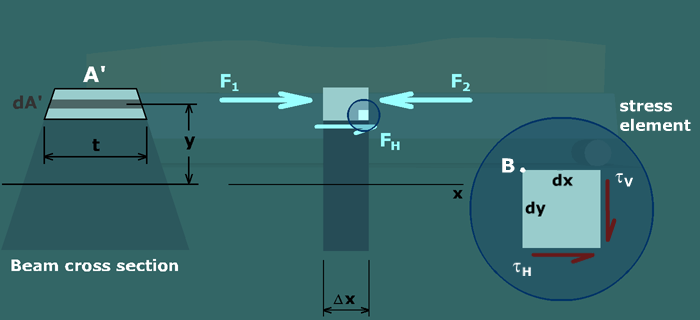

The stress element must satisfy equilibrium; therefore, will write an equilibrium equation for the sum of moments about B.


Derivation of shear stress formula

From equilibrium, the shear stress τH that exists on a horizontal face must be equal in magnitude to the shear stress τV acting on a vertical face. Furthermore, we can conclude that shear stress always occurs on both horizontal and vertical planes.
