Case 1 Deflection
scene 5 of 12
Propped cantilevers

Case 1

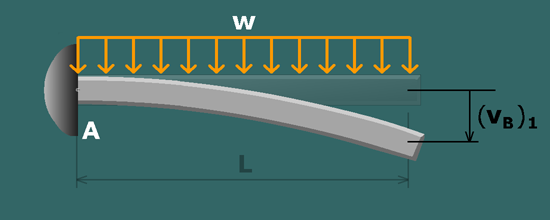

Cantilever beam with distributed load over entire span

The deflection at the free end of a cantilever beam with a distributed load w over the entire span L is given by:

Propped cantilevers

The negative sign indicates that the beam deflects downward.
