MecMovies 4.0 : M12.13: Absolute Maximum Shear Stress

scene 3 of 8

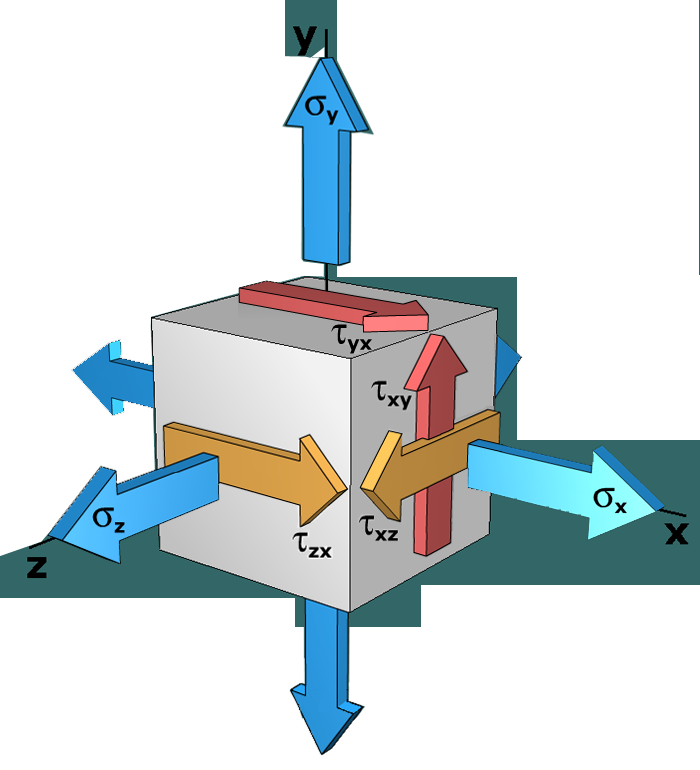

Note: To satisfy equilibrium, $τ_{z x}$ must equal $τ_{x z}$ .

Shear stress $τ_{z x}$ on the $z$ face acting in the $x$ direction.

Shear stress $τ_{x z}$ on the $x$ face acting in the $z$ direction.
