Stress Transformation Equations
scene 2 of 7

The equations for plane stress transformations have been developed previously.

Deriving equations for Mohr's circle

These trigonometric identities may be used to express the transformation equations in terms of double angles.

Deriving equations for Mohr's circle

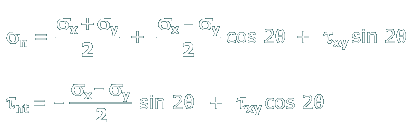

Using the double-angle trigonometric functions, the equations for plane stress may be written as:

Deriving equations for Mohr's circle
