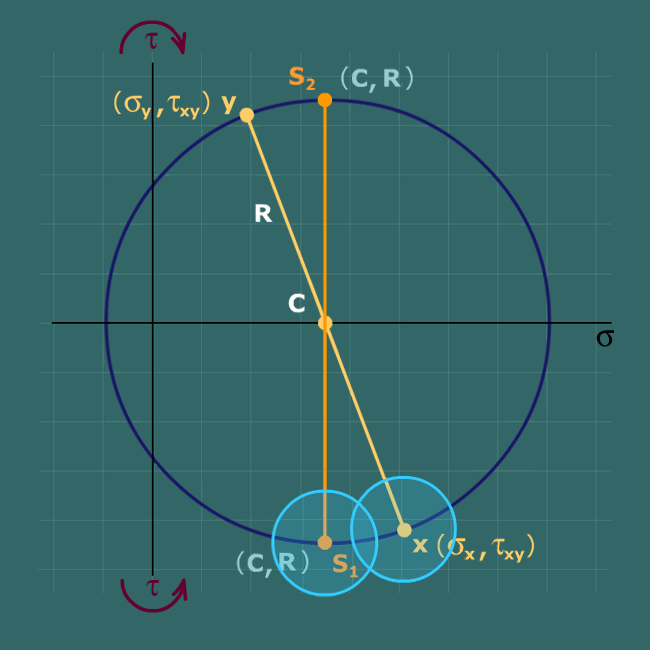

Points S1 and S2 on Mohr's circle are the two stress combinations with τmax. To determine the orientation, determine the angle between the normal to the x face (i.e., the x axis) and the normal to the S1 face.
