Principal stresses in a wide-flange beam
Principal stresses in a wide-flange beam

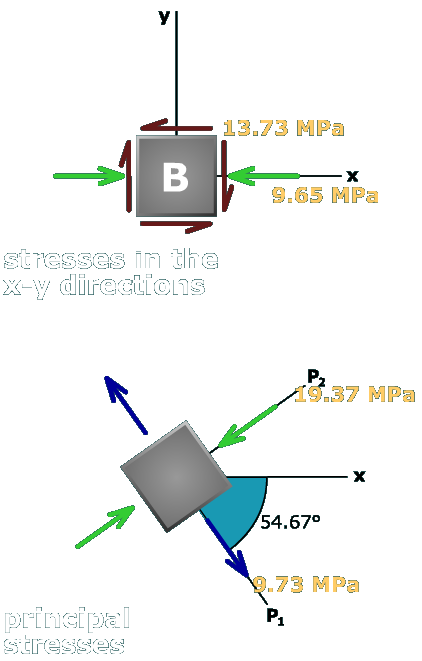

Note that there are no shear stresses on the principal stress faces.

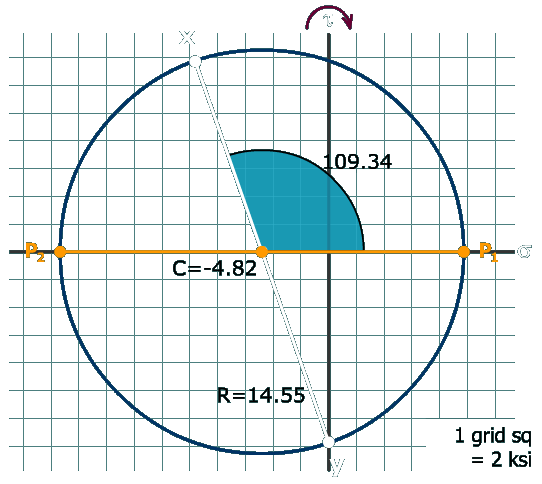

σp1= +9.73 ksi                                               θp=-54.67°σp2=-19.37 ksi
