MecMovies 4.0 : M2.1: Normal Strain in Rod Assembly

scene 4 of 8

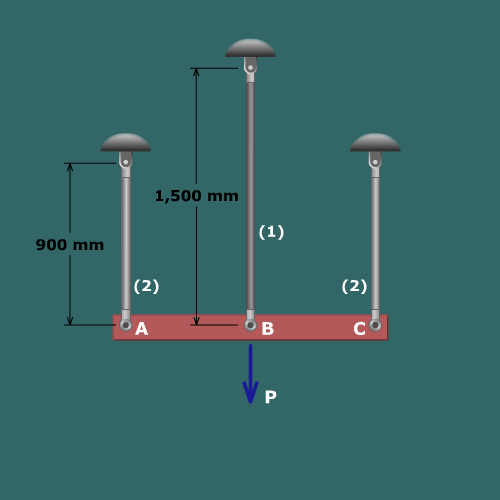

The figure shows a horizontal bar A B C supported by steel rods of height 900 millimeters at A and C and by a steel rod of height 1500 millimeters at B. A load P directed vertically downwards acts at B. The rods extend downward by 1.8 millimeters.

Based on the measured strain, the axial elongation of rod $(1)$ must be $1.8 mm$ . Since rigid bar $ABC$ is attached to rod $(1)$ , the rigid bar must deflect the same amount.

The symmetry of the assembly ensures that the rigid bar will remain horizontal as it deflects. Therefore, the deflection of the rigid bar at joints $A$ and $C$ must be the same as the deflection at $B$ .
