Chapter 8: Bending
M8.20: C-Clamp Normal Stresses

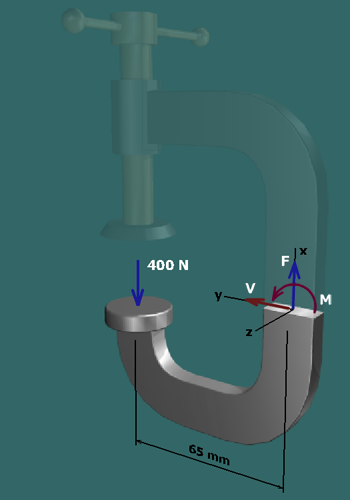

Clamp Free-Body Diagram
State the Problem
Table of Contents
Clamp Free-Body Diagram
Section Properties
Normal Stresses
Finished
Try One
scene
3
of
7
Since the clamp must satisfy equilibrium, write equations summing forces and moments:
