C-clamp normal stresses

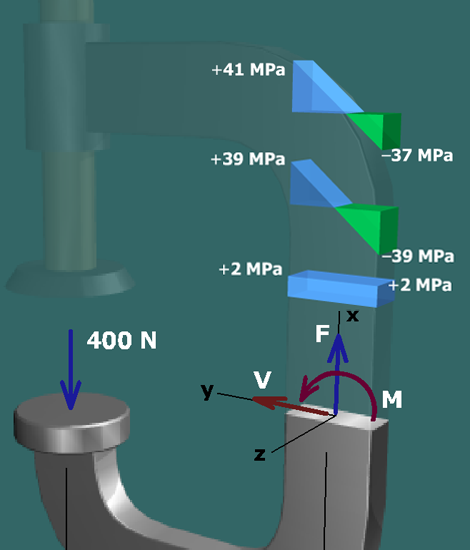

Since both the axial force F and the bending moment M produce normal stresses on the clamp body and since these stresses act in the same direction (i.e., the x direction), the stresses simply add together.

The normal stress magnitude is greater on the inner surface of the clamp.
