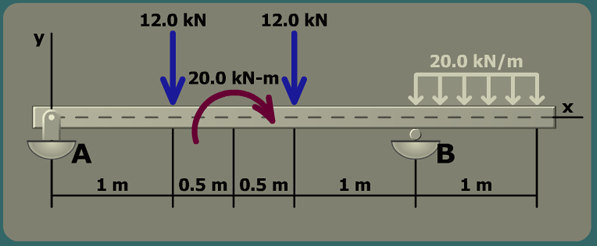

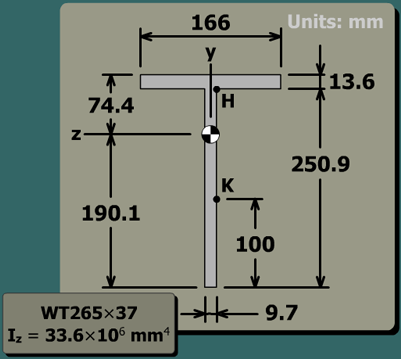

A WT265×37 structural steel tee shape beam is loaded and supported as shown. In the span between x = 2 m and x = 3 m, determine:
a) the transverse shear stress at H,
b) the transverse shear stress at K, and
c) the maximum transverse shear stress.
