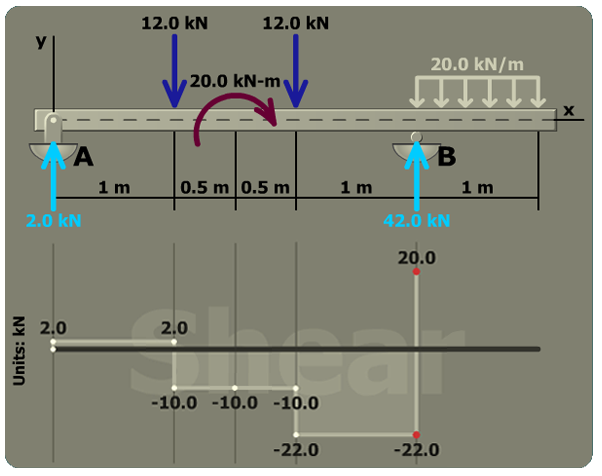

Constructing the shear diagram
Considering the segment
from x = 3 m to x = 3 m
area under load
diagram = 0.00 kN
concentrated
forces = +42.00 kN
total shear force
change = +42.00 kN
at x = 3 m, V = -22.00 kN
total shear force
change = +42.00 kN
at x = 3 m, V = +20.00 kN
