M9.6: Shear Stress in a Flanged Shape

Plan the Solution

State the Problem
Plan the Solution
Table of Contents
Shear-Force and Bending-Moment Diagrams
Moment of Inertia Calculation
Compute Q
Compute the Maximum Shear Stress

scene 2 of 7

Shear stress in a flanged shape

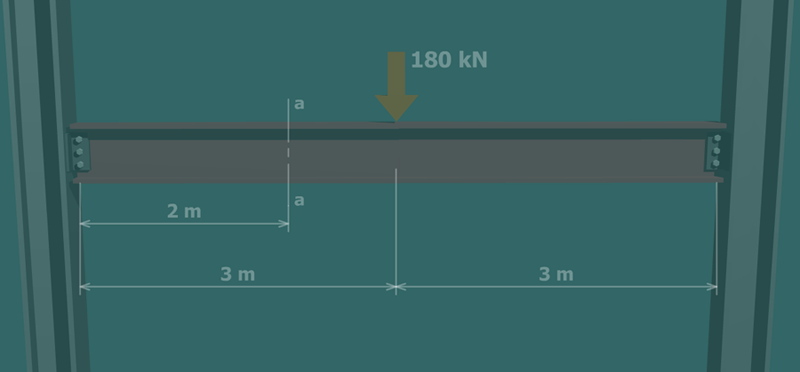

The transverse shear stress formula is used to determine the shear stress in the beam. To use this formula, four values are needed:
