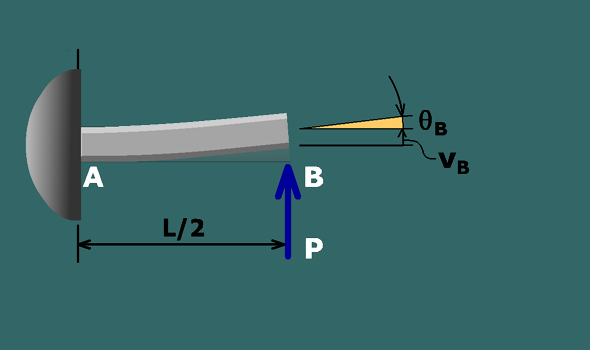

Consider the portion of the beam from A to B,
and determine the slope and deflection of the
beam at B due to the
load P.

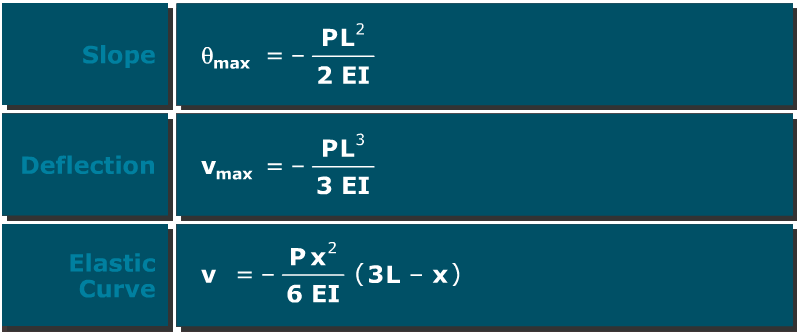

For a cantilever beam of length L with a concentrated load P applied at the free end, the slope at the free end is given by:
and the deflection at the free end is given by:
