Chapter 10: Beam Deflections
M10.13: Computing Forces from Known Deflections
Case 1 Deflection at B From the Elastic Curve
State the Problem
Table of Contents
Separate the Loadings
General Elastic Curve Equation for Case 1
Adapt the Elastic Curve
Case 1 Deflection at B From the Elastic Curve
Case 2 Deflection at B
Compatibility Equation for Deflections at B
Solve For P
Application
scene
6
of
10

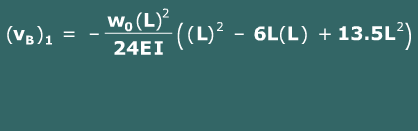

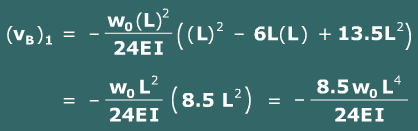

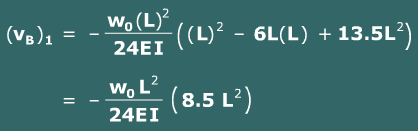

To find the deflection at
B
, this equation will be solved for
x = L
:
