Indeterminate beam with elastic support


To develop a third equation, we will consider the deflection of the beam at point C. The steps involved in this process can be outlined as follows.

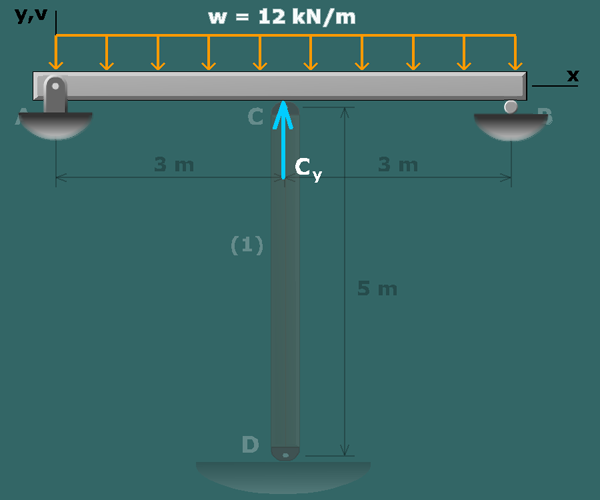

  • We will replace the post with an unknown force Cy.
  • Using the method of superposition, we will derive an expression for the beam deflection at C in terms of Cy.
  • We'll take into account the deformation of the post (1) due to the force it carries.

These steps will produce a equation in terms of Cy based on the deflection of the beam at C. This type of equation is known as a compatibility equation.
