M12.7: Stresses on a Specified Plane
Compute σ
n
on Plane AB
State the Problem
Table of Contents
Stress Values With Proper Signs
Define Plane AB by its Normal
Define n and t Axes
Define θ with Proper Sign

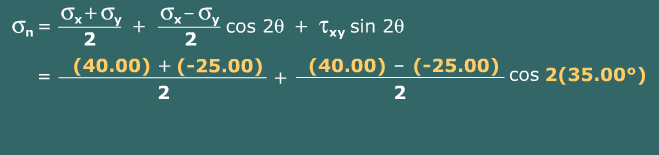

Compute σ
n
on Plane AB
Compute τ
nt
on Plane AB
Summary of Results
scene
7
of
9

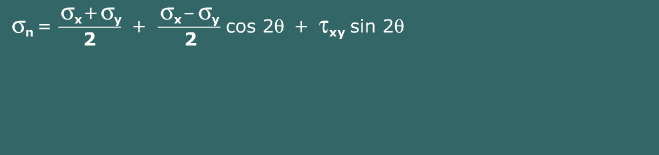

Normal stress
σ
n
on the
n
face
tension normal stress on
n
face
