MecMovies 4.0 : M13.5: Strain Measurement with Rosettes

scene 4 of 11

Strain measurement with rosettes

Having determined ε_x and ε_y, find γ_xy from the equation for gage b:

ε_{b} = ε_{x} \cos^{2} θ_{b} + ε_{y} \sin^{2} θ_{b} + γ_{xy} {sinθ}_{b} {cosθ}_{b}

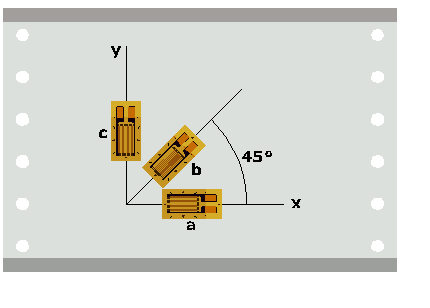

Gage b makes an angle of 45° with the x-axis; therefore:

{cosθ}_{b} = 0.7071

and

{sinθ}_{b} = 0.7071

Solve the strain transformation equation for γ_xy:

γ_{xy} = \frac{ε_{b} - ε_{x} \cos^{2} θ_{b} - ε_{y} \sin^{2} θ_{b}}{{sinθ}_{b} {cosθ}_{b}} = \frac{- 130 με - (- 215 με) (0.5) - (460 με) (0.5)}{0.5}

= - 505 μrad
