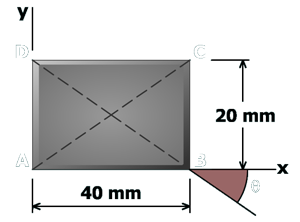

M13.2: Strain Transformation Example
Example
Determine normal and shear strains at specified orientation.

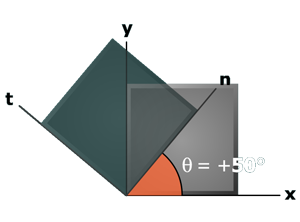

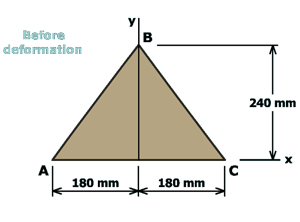

M13.3: Strain Transformation Example
Example
Determine normal and shear strains based on measurements in three directions.

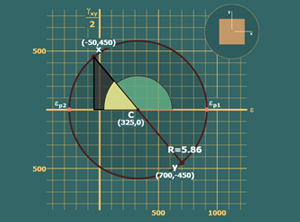

M13.4: Coach Mohr's Circle of Strain
Theory | Interactive example | Learning Tool
Learn to construct and use Mohr's circle to determine principal strains including the proper orientation of the principal strain planes.

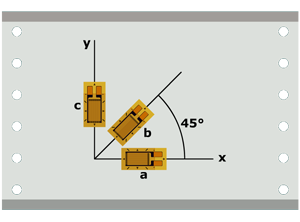

M13.5: Strain Measurement with Rosettes
Example | Try one
Calculating strain states with rosette strain data.

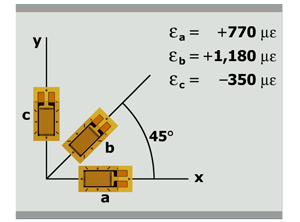

M13.6: Principal Stresses from Rosette Data
Example | Try one
Using strain gage rosette data to compute the normal and shear strains, the normal and shear stresses, and the principal stresses in the x-y plane.

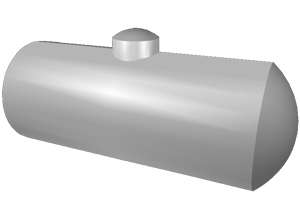

M13.7: Generalized Hooke's Law Biaxial Stress
Theory
Derivation of stress and strain relationships for plane stress.
