Chapter 15: Combined Loads
M15.3: Principal Stresses in a Rectangular Tube Beam
Equilibrium
State the Problem
Plan the Solution
Table of Contents
Equilibrium
Construct the Shear-force Diagram
Construct the Bending-moment Diagram
V and M Values at H
Bending Stress at H
Shear Stress at Point H
Stress Element at H
Principal Stresses
Maximum In-Plane Shear Stress
Finished
Try One
scene
4
of
14

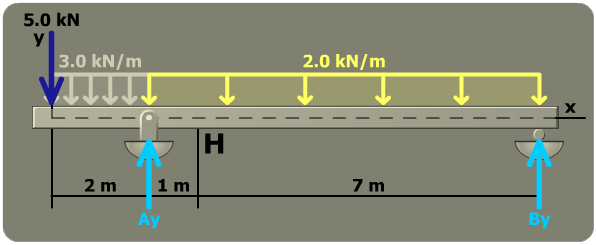

Sum moments about
A
to compute the reaction force at
B
:
