MecMovies 4.0 : M1.12: Stresses on an Inclined Plane

scene 6 of 7

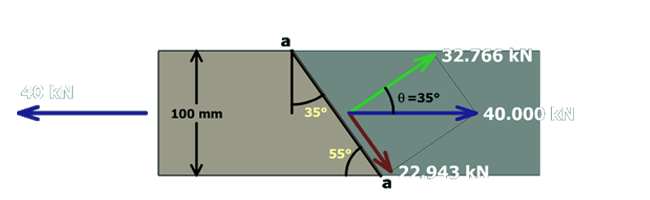

The figure shows a steel bar of height 100 millimeters. A section inclined at an angle of 55 degrees with respect to the horizontal is shown. The load on the left end of the bar is 40 kilo newton directed leftwards. The load on the inclined surface has magnitude 40 kilo newton and is directed rightwards. The load on the inclined surface is resolved into a vector of magnitude 22.943 kilo newton parallel to the inclined surface and a vector of magnitude 32.766 kilo newton perpendicular to the inclined surface. The normal to the surface is at an angle of theta which equals 35 degrees with respect to the horizontal.

The magnitude of the normal stress on the inclined plane is:

$σ = \frac{(32.766 kN) (1, 000 N / kN)}{3, 051.936 {mm}^{2}} = 10.736 MPa = 10.74 MPa$

The magnitude of the shear stress on the inclined plane is:

$τ = \frac{(22.943 kN) (1, 000 N / kN)}{3, 051.936 {mm}^{2}} = 7.518 MPa = 7.52 MPa$
