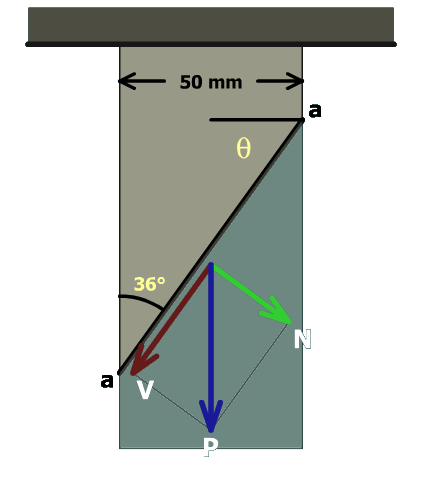

The figure shows a vertical bar of width 50 millimeters fixed to the ceiling. An inclined plane labeled a a is shown and it is at an angle of 36 degrees with respect to the vertical. The load P on the inclined surface is directed vertically downwards and it is resolved into a vector v parallel to the inclined surface and a vector N perpendicular to the inclined surface.

Determine the angle θ between the surface which is perpendicular to the axial force P (i.e., the horizontal plane) and the inclined plane surface a-a.

From the geometry of the triangle formed by the inclined surface:

θ=180-90-36=54
