M10.7: Beam Deflections by Superposition

Combine the Cases

Introduction
Table of Contents
Conditions Required for Superposition
Cantilever Beam Example
Deflection of Case 1
Deflection of Case 2
Combine the Cases
Simply Supported Beam Example
Simply Supported Beam Setup
Case 1 - Distributed Load
Case 2 - Concentrated Load
Recombine Subproblems
Finished

scene 7 of 13

Beam deflections by superposition

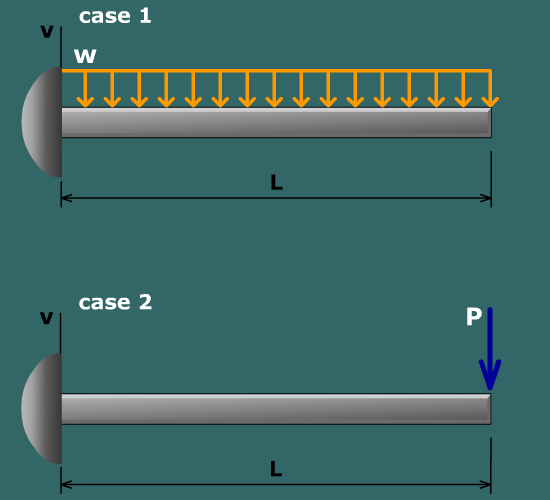

To find the total deflection at the tip of the cantilever beam, add the deflections determined from the individual cases:
