In using the stress transformation equations, errors frequently involve incorrect sign conventions. The proper sign conventions for normal and shear stress are:
- tension normal stress is defined as positive
- compression normal stress is defined as negative
- shear stress that acts on a positive x face in the positive y direction is defined as positive

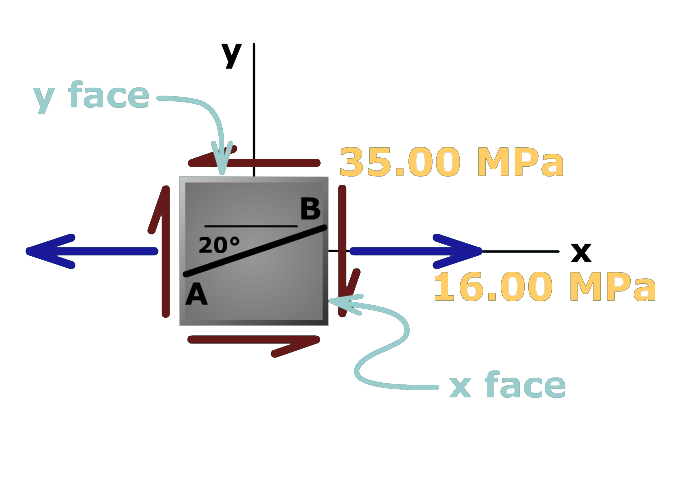

For the state of stress shown here, the numerical stress values are:
