M12.8: Wood Grain Stresses

Compute τ_nt on Plane AB

Introduction
State the Problem
Table of Contents
Stress Values With Proper Signs
Define Plane by its Normal
Define n and t Axes
Define θ with Proper Sign
Compute σ_n on Plane AB

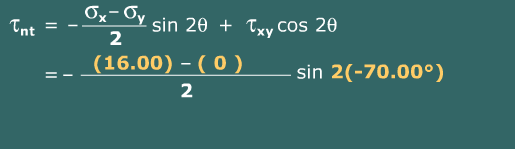

Compute τ_nt on Plane AB
Summary of Results

scene 9 of 10

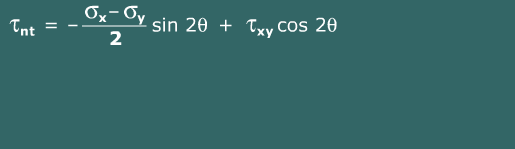

Shear stress τ_nt on the n face in the t direction

shear stress on positive n face acts in the positive t direction

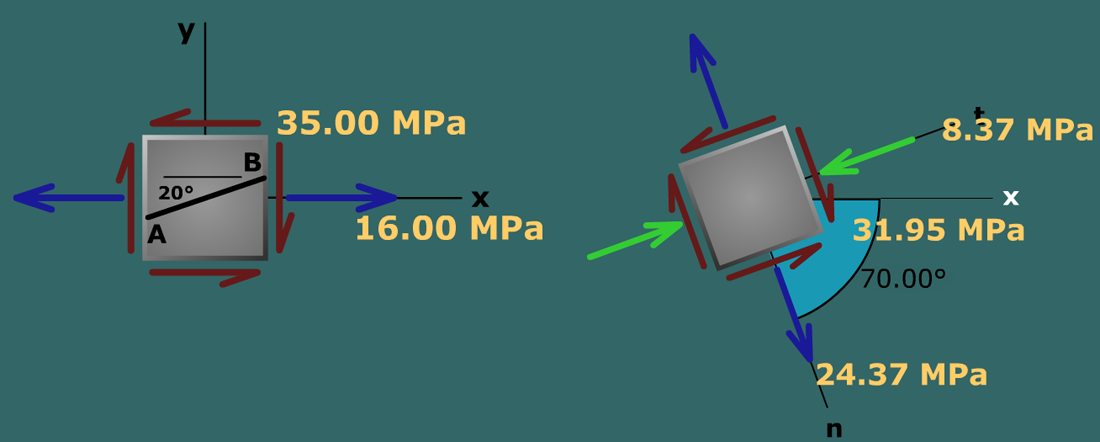

Wood grain stresses
