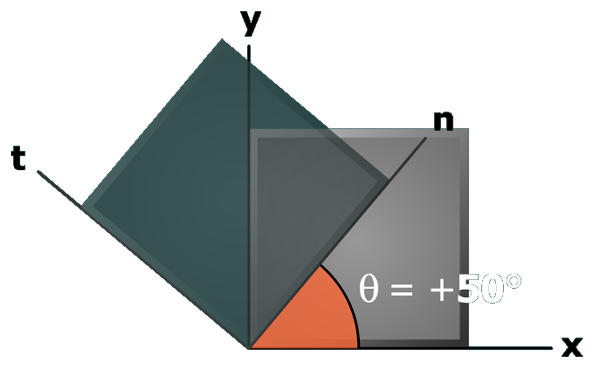

Strain transformation example

The shear strain γnt is computed from:

γnt=-2 (εx-εy) sinθcosθ+γxy (cos2θ-sin2θ)    =-2 (900μ)-(-600μ) sin(50∘) cos(50∘)          +(-850μ)cos2(50∘)-sin2(50∘)    =-1,329.61 μm/m
