Chapter 15: Combined Loads
M15.7: Combined Loadings - Post and Beam
Equilibrium
State the Problem
Table of Contents
Free-Body Diagram
Equilibrium
Sigma Due to Axial Force
Tau Due to Shear Force
Sigma Due to Bending Moment
Section Properties - Area
Section Properties - Inertia
Section Properties - Q and t
Calculate Sigma Axial
Calculate Tau
Calculate Sigma Bending
Stress Element for B
Finished
scene
4
of
15

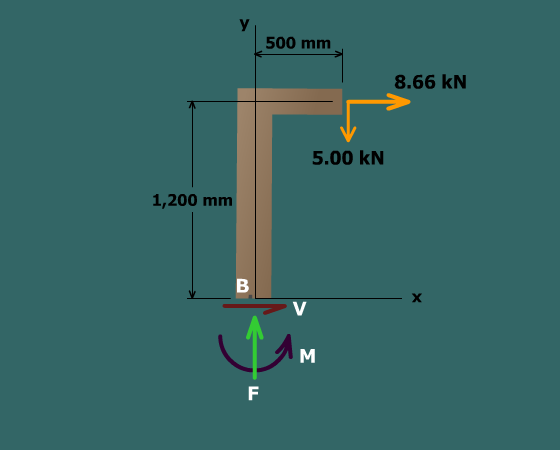

Write the equilibrium equations for the post and solve for
F
,
V
, and
M
:
