MecMovies 4.0 : M15.7: Combined Loadings

scene 10 of 15

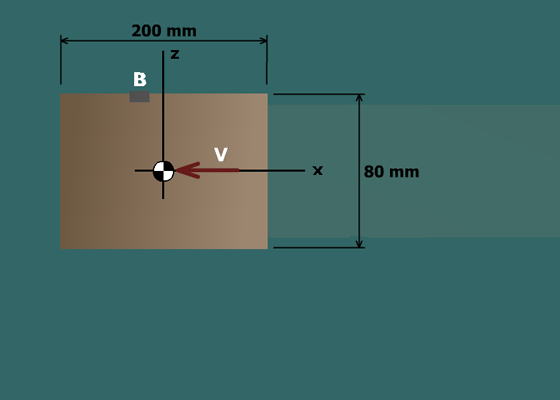

The transverse shear force $V$ acts in the $- x$ direction. To calculate the transverse shear stress, use the elastic shear stress formula:

$τ = \frac{V Q}{I t}$
