Combined loadings – post and beam

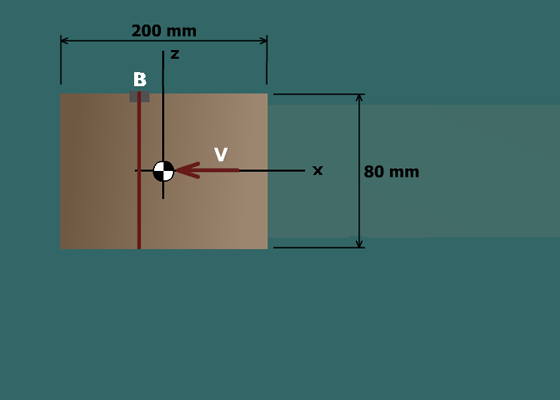

The transverse shear force V acts in the -x direction. To calculate the transverse shear stress, use the elastic shear stress formula:


τ=VQIt


To find τ, first slice through the cross section at B, parallel to the neutral axis. The width of the cross section at this location is the dimension t.
