Combined loadings – post and beam

The bending moment M acts about the z axis; therefore, the neutral axis for this configuration will be the z axis.

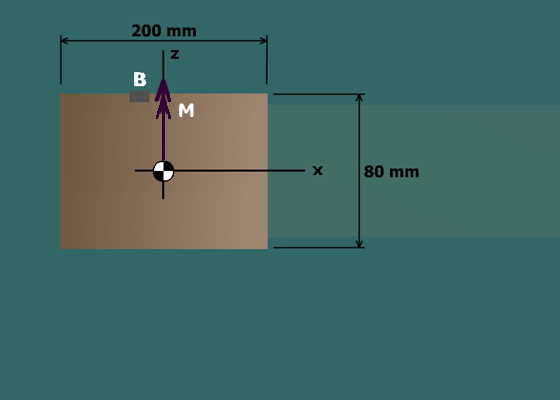

The base dimension b is parallel to the neutral axis, and the height dimension h is perpendicular to the neutral axis. The moment of inertia Iz needed here is thus:

Iz=(80 mm)(200 mm)312=53,333,333 mm4

To calculate the transverse shear stress and the normal stress due to the moment, the moment of inertia will be computed from the familiar formula:


Iz=bh312
