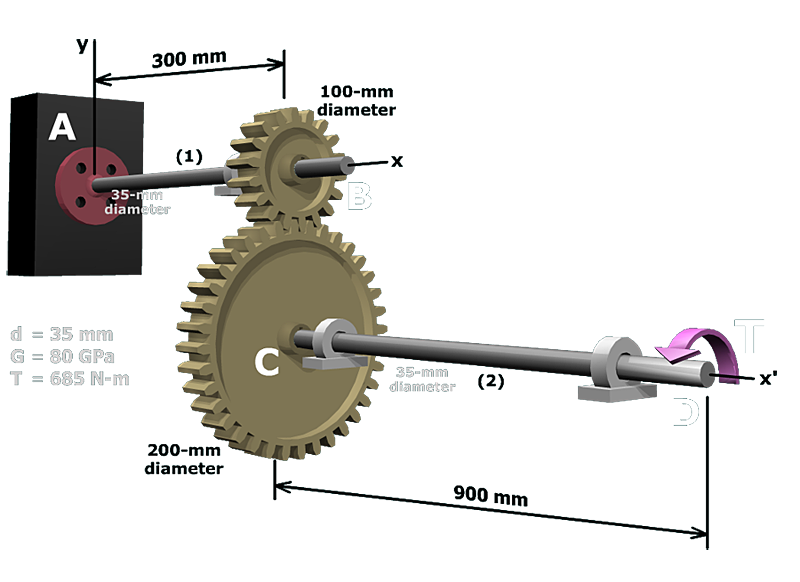

Diagram shows two shafts A B and C D of 35 millimeter diameter and 300 millimeter and 900 millimeter respectively, are connected using two gears, B with 100 millimeter diameter and C with 200 millimeter diameter. A torque T is applied at the end of C D at D. Parameters: d = 35 millimeter, G = 80 gega Pascal, T = 685 Newton meter.

Determine the shear stress in each shaft.

Determine the angle of rotation at

D

.

Two solid steel $(G = 80 GPa)$ shafts are connected by the gears shown.

The diameter of each shaft is $d = 35 mm$ .

A torque $T = 685 N - m$ is applied to the system at $D$ .
