Chapter 6: Torsion
M6.13: Two Shafts Connected by Gears
Show Gear Rotations
State the Problem
Plan the Solution
Table of Contents
Review Sign Conventions
Compute Torques
Torques in Shafts (1) and (2)
Compute Shear Stresses
Compute Angles of Twists in Shafts (1) and (2)
Compute Rotation Angle at D
Accounting for Gear Rotation
Show Gear Rotations
Finished
scene
11
of
12

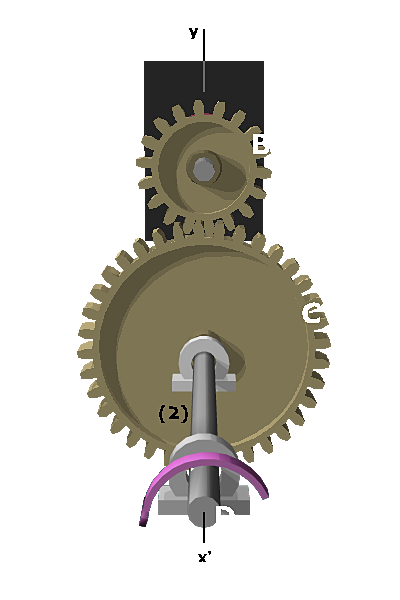

Let's review the rotations in the system, looking from another viewpoint:
