Chapter 9: Shear Stress In Beams
M9.10: Nail Spacing for U-Beam
State the Problem
State the Problem
Plan the Solution
Table of Contents
Shear Force and Section Properties
Shear-Force and Bending-Moment Diagrams
Locate the Centroid
Compute Moment of Inertia About z Axis
Compute Q
Shear Flow Equation
Maximum Allowable Nail Spacing
Finished
Concept Checkpoints
scene
1
of
12

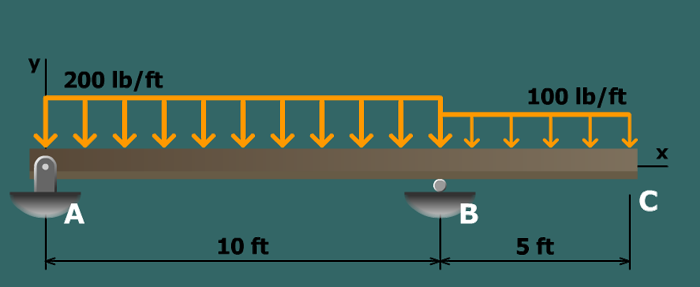

A simply supported beam carries the loads shown.
