Chapter 9: Shear Stress In Beams
M9.10: Nail Spacing for U-Beam
Shear Flow Equation
State the Problem
Plan the Solution
Table of Contents
Shear Force and Section Properties
Shear-Force and Bending-Moment Diagrams

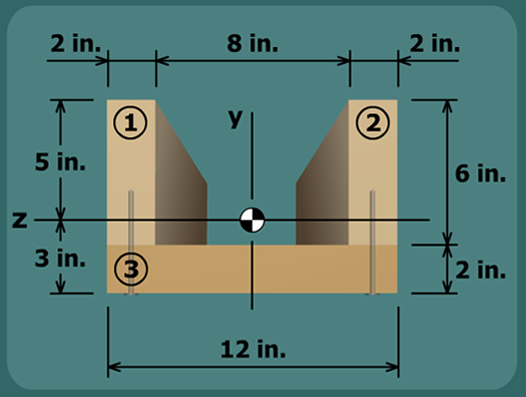

Locate the Centroid
Compute Moment of Inertia About z Axis
Compute Q
Shear Flow Equation
Maximum Allowable Nail Spacing
Finished
Concept Checkpoints
scene
9
of
12
Calculating shear flow
q
to the left of support
B
:
