Chapter 9: Shear Stress In Beams
M9.10: Nail Spacing for U-Beam
Finished
State the Problem
Plan the Solution
Table of Contents
Shear Force and Section Properties
Shear-Force and Bending-Moment Diagrams
Locate the Centroid
Compute Moment of Inertia About z Axis
Compute Q
Shear Flow Equation
Maximum Allowable Nail Spacing
Finished
Concept Checkpoints
scene
11
of
12
Finished
Proceed to
Concept Checkpoints
for this topic...

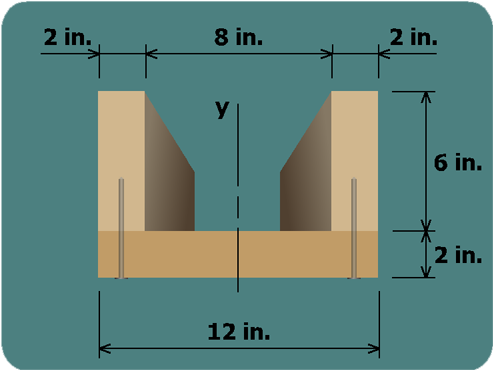

The maximum allowable spacing for the nails
to the left of support
B
is
s = 3 in.
