MecMovies 4.0 : M15.2: Principal Stresses in a Tee Beam

scene 1 of 14

The cantilever beam shown has a uniformly distributed load of $2 k i p s / f t$ .

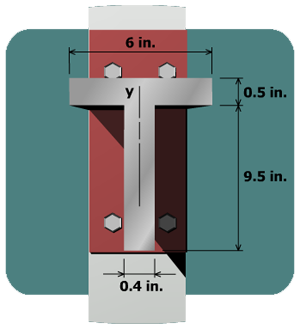

The beam cross section is a tee shape with the dimensions shown.
