MecMovies 4.0 : M15.2: Principal Stresses in a Tee Beam

scene 4 of 14

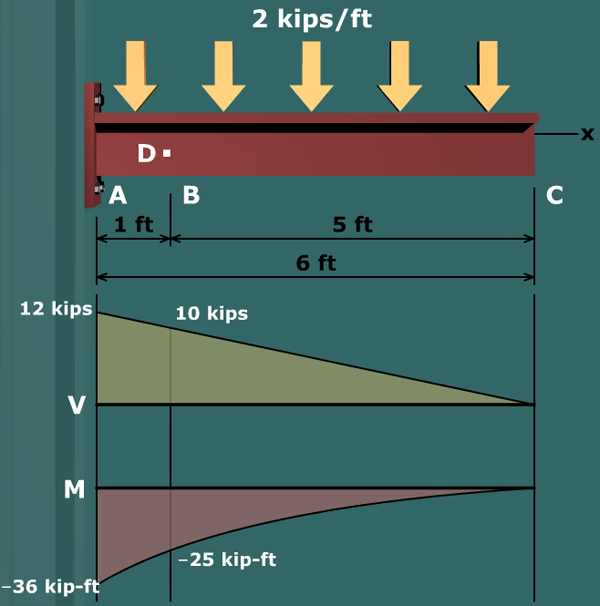

The shear-force and bending-moment diagrams for the beam are shown.
At $D$ , the shear force is
$V = + 10 k i p s$ and the bending moment is
$M = - 25 k i p - f t$
