Chapter 15: Combined Loads
M15.2: Principal Stresses in a Tee Beam
Finished
State the Problem
Plan the Solution
Table of Contents
Shear-Force and Bending-Moment Diagrams
Locate the Centroid
Compute Moment of Inertia About the z Axis
Compute the Bending Stress
Compute Q
Compute the Transverse Shear Stress

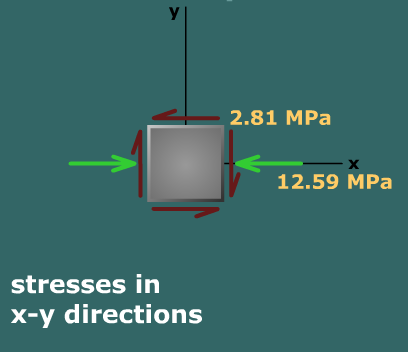

Stress Element at D

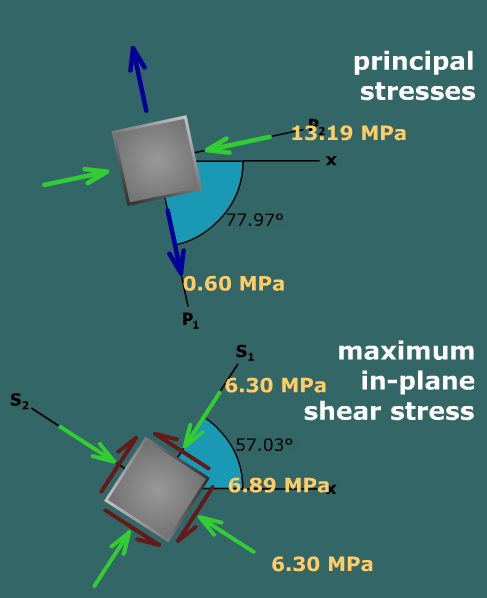

Principal Stresses at D
Maximum In-Plane Shear Stress
