Principal stresses in a tee beam

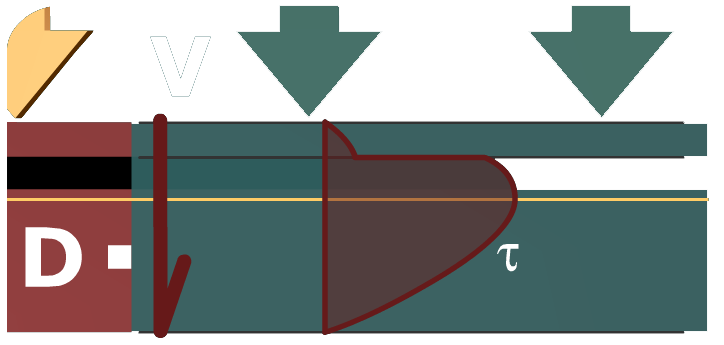

The internal shear force V creates transverse shear stress τ throughout the cross section. The shear stress is parabolically distributed.


The shear force at D is V=+10 kips. A positive shear force acts downward on the right face of a beam. The shear stress in the beam acts in the same direction.
