MecMovies 4.0 : M15.2: Principal Stresses in a Tee Beam

scene 11 of 14

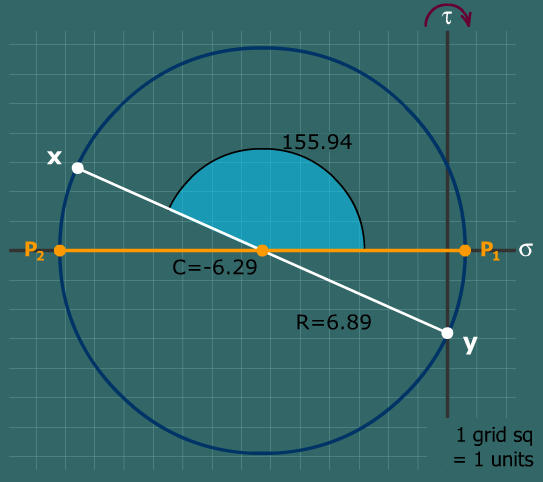

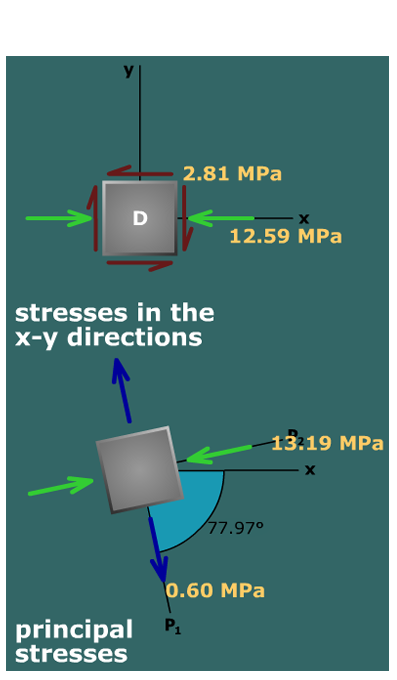

Points $P_{1}$ and $P_{2}$ on Mohr's circle denote the most positive and the most negative normal stresses that are possible, given the state of stress at $D$ .
