Chapter 6: Torsion
M6.8: Maximum Torque Based on Twist Angle

State the Problem
Plan the Solution
Table of Contents
Review Sign Conventions
Equilibrium
Torque-Twist Relationships
Geometry of Deformation
Equation for Rotation Angle at C
Express in Terms of T_c
Solve for T_c
compute T_c
Finished

scene 10 of 12

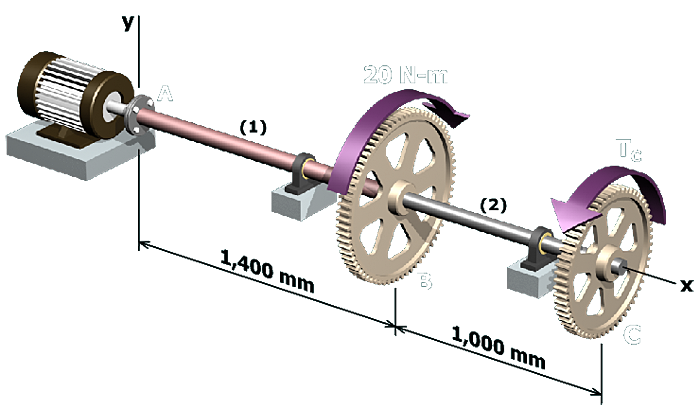

Diagram shows a shaft A B C containing two gears at B and C which is connected to a motor A where the torques of 20 Newton meter and T subscript c is applied on B and C and the distance A B is 1400 millimeter and B C is 1000 millimeter. The x axis is taken along the axis of the gears and the y axis is taken along the motor support at A and perpendicular to the x axis.

$(T_{C} - 20 N - m) \frac{L_{1}}{J_{1} G_{1}} + \frac{T_{C} L_{2}}{J_{2} G_{2}} = 0.01745 rad$
