Equilibrium
scene 5 of 14

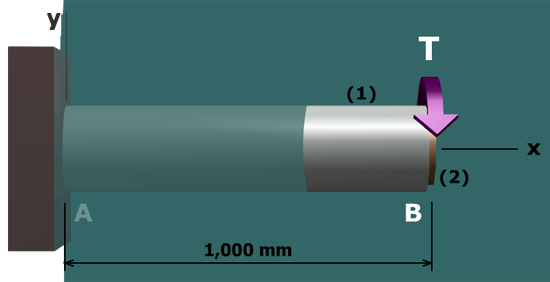

Diagram shows a shaft A B with aluminum segment marked 1 of length 1,000 millimeters inside which is a brass shaft marked 2. Both the shafts are centered on the central axis x. A torque T is applied at B.

Draw a FBD around end B.
