Free-Body Diagram: Consider Vertical Plane
scene 3 of 15

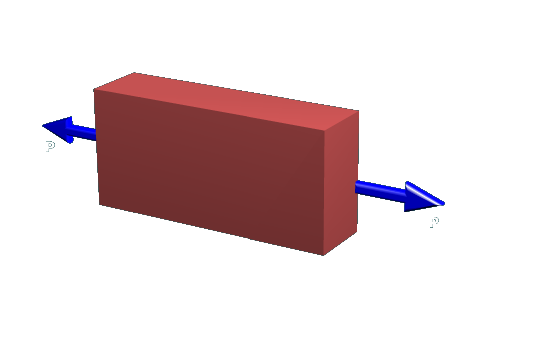

The figure shows a prismatic bar subjected to loads on either end. The loads have magnitude P and are directed away from the end surfaces of the bar.

Consider a bar subjected to an axial force P. Force P is applied at the centroid of the bar. The cross-sectional area of the bar is A.
