Equilibrium
scene 4 of 13

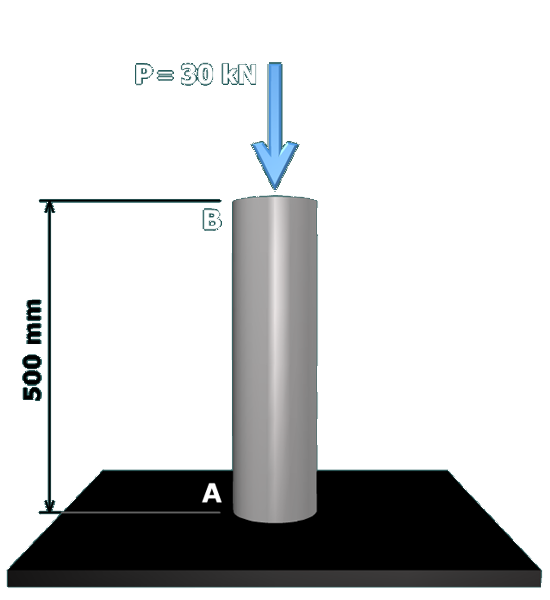

The figure shows a vertical tube A B with a rigid support at A. The height of the tube is 500 millimeters and the load at B is P which equals 30 kilo newtons directed vertically downwards.

Begin by drawing a free-body diagram at end B.
