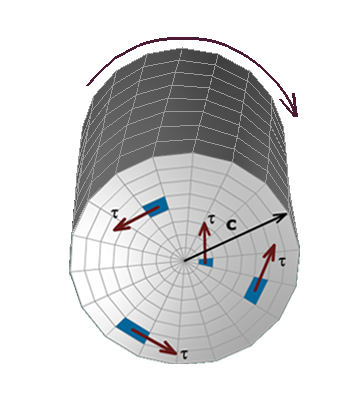

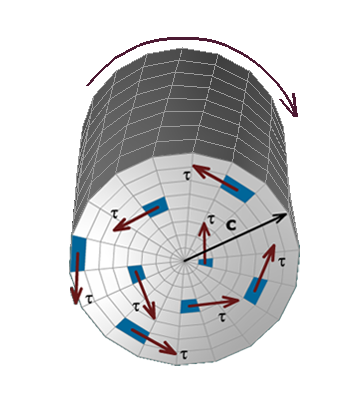

To find the resultant moment for the shaft, we've got to add up all of the elemental moments that exist on the entire cross section.

To do this, we'll integrate $dM$ over the shaft area $A$ .

$\int dM = \int_{A} ρ τ dA$

Previously, we developed a relationship between $τ$ and $τ_{\max}$ :

$τ = \frac{ρ}{c} τ_{\max}$

Substitute this expression for $τ$ into the integral:

$\int dM = \int_{A} \frac{τ_{\max}}{c} ρ^{2} dA$
