Elastic and Inelastic Strain
scene 5 of 10

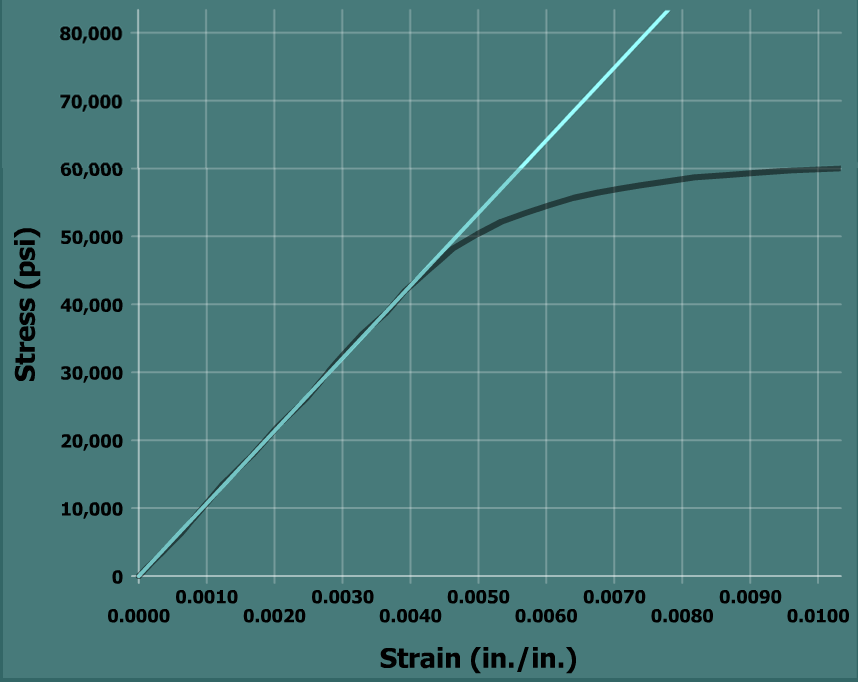

The graph plots stress in p s i versus strain in inch per inch. The horizontal axis ranges from 0 to 0.1 and the vertical axis ranges from 0 to 80,000. The graph starts at the bottom left of the viewing window at the origin, goes up and to the right with constant steepness till the point (0.050, 50,000). The graph then goes up and to the right with a reduced positive slope till (0.1, 60,000). A straight line is drawn passing through (0, 0) and (0.0040, 43,700) and it overlaps the linear portion of the curve.

Earlier, we observed the effect of unloading and reloading on the load-deformation plot. Now, let's look at the effect of unloading and reloading on the stress-strain diagram.
